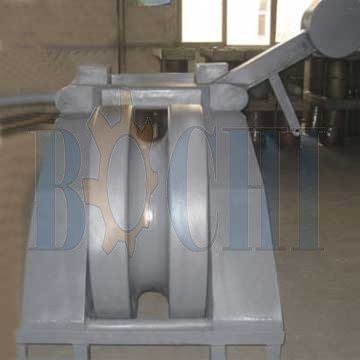

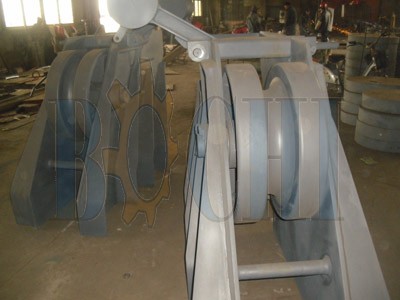

JIS F-2032 Roller Pawl Type Chain Stopper
JIS F-2032 Roller Pawl Type Chain Stopper
Dimensions(mm)
|
Nominal
Chian Dia.
|
h
|
h1
|
h2
|
L
|
L1
|
L4
|
B
|
b
|
D
|
Weight(kg)
|
70-73
|
125
|
422
|
860
|
660
|
640
|
241
|
980
|
115
|
584
|
1096
|
76-78
|
133
|
450
|
918
|
700
|
680
|
254
|
1046
|
123
|
624
|
1316
|
81-84
|
143
|
483
|
983
|
760
|
720
|
279
|
1110
|
134
|
672
|
1608
|
87-90
|
153
|
515
|
1055
|
810
|
770
|
295
|
1190
|
143
|
720
|
1938
|
92-95
|
162
|
545
|
1115
|
860
|
810
|
317
|
1250
|
151
|
760
|
2286
|
97-102
|
175
|
584
|
1195
|
920
|
860
|
337
|
1320
|
161
|
816
|
2787
|
105-107
|
185
|
617
|
1265
|
981
|
900
|
364
|
1390
|
170
|
864
|
3274
|
111-114
|
195
|
651
|
1335
|
1026
|
940
|
376
|
1460
|
180
|
912
|
3874
|
117-122
|
208
|
695
|
1427
|
1100
|
995
|
408
|
1550
|
191
|
976
|
4600
|
127-132
|
225
|
750
|
1542
|
1190
|
1060
|
441
|
1660
|
207
|
1056
|
5750
|
|
