    Introduction:

    U sheet pile is a service-proven type familiar to both designers and constructors, which is extensively used for permanent structures, temporary earth-retaining works and temporary cofferdams, etc.
    In addition to its rigid structure, its moment of inertia per pile is relatively large, thus allowing repetitive use.
    Available in a range of sections, with section modulus values ranging from 456 to 4042 cm3/m.

    U Sheet Pile have many advantages as following:
    1.It combines grest profile depth and has excellent statical properties.
    2.It is quite suitable for re-use due to the symmetrical form of the single element.
    3.It is possible to assemble the piles into pairs in the factory, this way couldimprove the quality and performance of installation.
    4.Good corrosion resistanca performance.



    Specification:

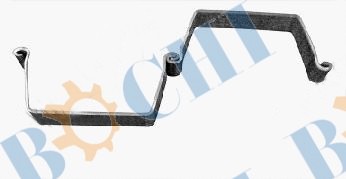

    U profile steel sheet piles

    Type

    Width

    Height

    Thickness

    Weight

    Per pile

    Weight

    Per wall

    Moment

    of inertia

    Section

    modulus

    mm

    mm

    mm

    Kg/m

    Kg/ m2

    Cm4/m

    Cm3/m

    BMU7

    750

    320

    5

    42

    56

    10725

    670

    BMU8

    750

    320

    6

    51

    68.1

    13169

    823

    BMU9

    750

    320

    7

    59.7

    79.6

    15251

    953

    BMU10-450

    450

    360

    8

    52.5

    116.7

    18268

    1015

    BMU11-450

    450

    360

    9

    58.6

    130.2

    20375

    1132

    BMU12-450

    450

    360

    10

    64.7

    143.8

    22444

    1247

    BMU11-575

    575

    360

    8

    60.4

    105.1

    19685

    1094

    BMU12-575

    575

    360

    9

    67.5

    117.4

    21973

    1221

    BMU13-575

    575

    360

    10

    74.5

    129.5

    24224

    1346

    BMU11-600

    600

    360

    8

    61.9

    103.2

    19897

    1105

    BMU12-600

    600

    360

    9

    69.5

    115.8

    22213

    1234

    BMU13-600

    600

    360

    10

    76.5

    127.5

    24491

    1361

    BMU16

    650

    480

    8

    71.3

    109.6

    39864

    1661

    BMU 18

    650

    480

    9

    79.5

    122.3

    44521

    1855

    BMU20

    650

    540

    8

    78.1

    120.2

    56002

    2074

    BMU23

    650

    540

    9

    87.3

    133

    61084

    2318

    BMU26

    650

    540

    10

    96.2

    146.9

    69093

    2559

    BMU30-700

    700

    558

    11

    119.3

    170.5

    83139

    2980

    BMU32-700

    700

    560

    12

    129.8

    185.4

    90880

    3246

    BMU35-700

    700

    562

    13

    140.2

    200.3

    98652

    3511

    BMU36-700

    700

    558

    14

    156.2

    223.2

    102145

    3661

    BMU39-700

    700

    560

    15

    166.9

    238.5

    109655

    3916

    BMU41-700

    700

    562

    16

    177.6

    253.7

    117194

    4170

    BMU 32

    750

    598

    11

    127.1

    169.5

    97362

    3265

    BMU 35

    750

    600

    12

    138.3

    184.4

    106416

    3547

    BMU 38

    750

    602

    13

    149.4

    199.2

    115505

    3837

    BMU 40

    750

    598

    14

    166.1

    221.5

    119918

    4011

    BMU 43

    750

    600

    15

    177.5

    236.7

    128724

    4291

    BMU 45

    750

    602

    16

    188.9

    251.8

    137561

    4570

    Optional Steel Grades:

    Model

    Mechanical Feature

    Yield(Mpa)

    Tensile(Mpa)

    Elongation(%)

    Impact Energy

    Q235B

    235

    375-460

    38

    27

    Q345B

    ≥345

    470-630

    ≥21

    ≥34

    Q345C

    ≥345

    470-630

    ≥21

    ≥34

    MDB350

    ≥350

    470-630

    ≥21

    ≥60

    MDB380

    ≥380

    480-640

    ≥21

    ≥60

    Foreign Model

    S355J0

    ≥355

    470-630

    ≥22

    ≥27

    St52-3

    ≥355

    490-630

    ≥22

    ≥27

    SM490A

    ≥325

    490-610

    ≥20

    SM490B

    ≥325

    490-610

    ≥20

    ≥27

    SS490

    ≥285

    490-610

    ≥19



    Model

    Chemical Composition %

    C

    Si

    Mn

    P

    S

    Q235B

    0.12-0.20

    ≤0.30

    0.30-0.70

    ≤0.045

    ≤0.045

    Q345B

    ≤0.20

    ≤055

    1.00-1.60

    ≤0.040

    ≤0.040

    Q345C

    ≤0.20

    ≤0.55

    1.00-1.60

    ≤0.035

    ≤0.035

    MDB350

    ≤0.20

    ≤0.50

    ≤1.50

    ≤0.025

    ≤0.020

    MDB380

    ≤0.20

    ≤0.50

    ≤1.50

    ≤0.025

    ≤0.020

    Foreign Model

    S355J0

    ≤0.24

    ≤0.55

    ≤1.60

    ≤0.040

    ≤0.040

    St52-3

    ≤0.20

    ≤0.55

    ≤1.60

    ≤0.040

    ≤0.040

    SM490A

    ≤0.20

    ≤055

    1.00-1.60

    ≤0.025

    ≤0.020

    SM490B

    0.18-0.20

    ≤0.55

    ≤1.60

    ≤0.025

    ≤0.020

    SS490

    0.28-0.38

    ≤0.35

    0.50-0.80

    ≤0.045

    ≤0.050

    Application:

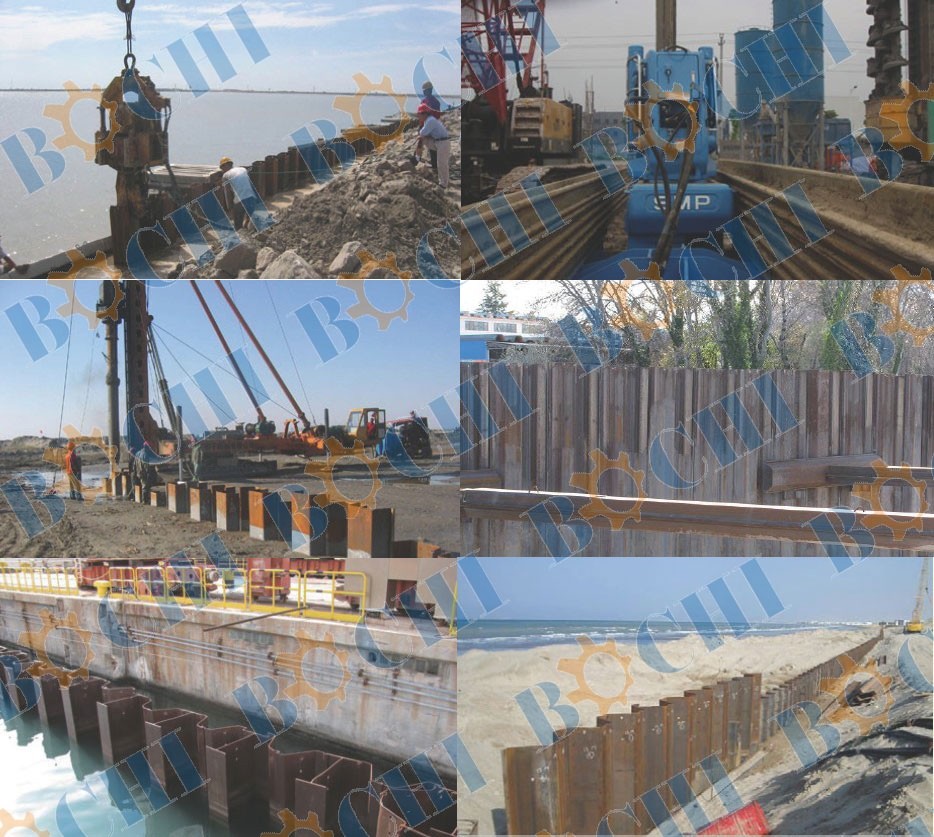

    Cofferdam(land); Cofferdam(Water); Low embankment; Deep foundation pit; Shallow underground excavation; Light-duty Sea Use; Heavy-duty Sea Use; Underground water quality control. etc.
